Welcome to Xiangshan Huayang Machinery Accessories Factory
0086-574-65010069  0086-574-65012388

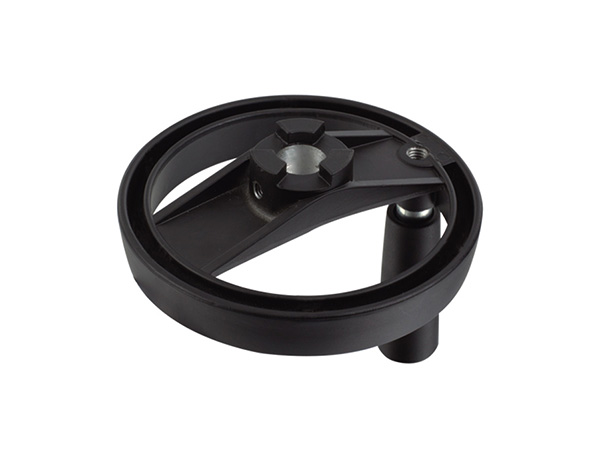

Two-spoke Clutch Handwheels With Revolving Handle
  • Two-spoke Clutch Handwheels With Revolving Handle
  • Product Name: Two-spoke Clutch Handwheels With Revolving Handle
    Model Number: HY8313.23
    Brand Name: Huayang
    Executive Standard:
    Material: Aluminum alloy
    Surfaced Process: Black
    Place of Origin: Zhejiang, China (Mainland)
Product specification

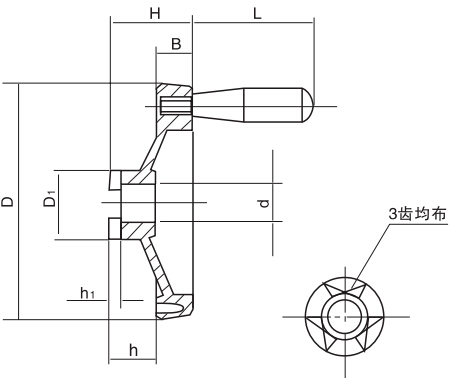

Drawing

HY8313.23離合齒雙輻條手輪結構圖


Parameter Size

Item No.Main dimensions（mm）Mounting hole
Type A

D

HBLdD?hh?
HY8313.23\17x125
1254320631735235
HY8313.23\16(20)x16016050228016、2040266
HY8313.23\22x200
2005825802245327
